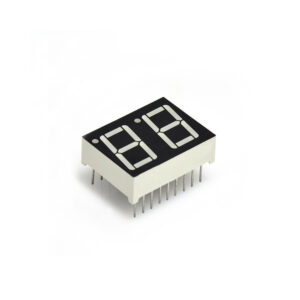

What is a 7-Segment LED Display?
A 7-segment LED display is an electronic display device used to show decimal numerals, and sometimes limited characters, in a simple and readable format. It consists of seven individual segments (LED bars) arranged in a pattern that forms numbers when lit in specific combinations.
These displays are commonly found in digital clocks, calculators, counters, meters, and other electronic devices that show numeric data.
How Does a 7-Segment Display Work?
Each segment is labeled from A to G, and by turning on specific segments, the display can show the digits 0–9. For example:
-
To show “8”, all 7 segments are turned on.
-
To show “1”, only segments B and C are on.
Some displays include an eighth segment (DP) used for decimal points.
Types of 7-Segment Displays
There are several types of 7-segment LED displays based on:
-
Color: Red, green, blue, white, amber.
-
Configuration:
-
Common Cathode (CC) – all cathodes share one connection
-
Common Anode (CA) – all anodes share one connection
-
-
Size: Digit height ranges from 0.28″ to over 2.0″
Applications of 7-Segment Displays
7-segment LED displays are widely used due to their simplicity, durability, and low power consumption. They are ideal for:
-
Industrial control panels
-
Household appliances
-
Automotive dashboards
-
IoT devices
-
Digital counters and meters
Why Use LED 7-Segment Displays?
-
Easy to read, even from a distance
-
Long lifespan and high reliability
-
Cost-effective for mass production
-
Compatible with microcontrollers (e.g., Arduino, STM32)
Conclusion
The 7-segment LED display remains one of the most practical and widely-used numeric display solutions in electronics. Whether you need to display a simple timer or integrate it into a complex device, this display offers a perfect balance of visibility, efficiency, and affordability.
